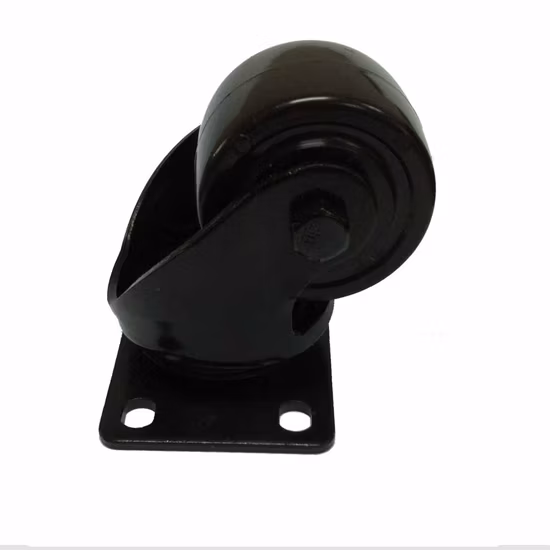

Kl25X-L1 Swivel Type Nylon Low Profile Caster

Basic Info

Model NO.	KL25X-L1
Bracket Thickness	4.0mm for Plate, 3.5mm for Steel Fork
Warehouse Storage	500PCS for Each Month
Special	Samples for Free by Freight Collected
Material	Nylon
Transport Package	40PCS/CTN for 2.5" 30PCS/CTN for 3"
Specification	Top Plate Swivel Type
Trademark	kezhi
Origin	China
HS Code	8302200000
Production Capacity	50000/Month

Product Description

Double Ball Bearing Swivel Type Nylon Low Profile Caster KL25X-L1

[Model Included]: KL25X-L1
[General Feature]:
Wheel Material : Nylon
Swivel Type and Electrophoresis
Double ball bearing
3.0mm thickness for plate
High shock absorption
High abrasion resistance
High Stain resistance

[Others Features]:
Wheel Size : 65*40mm/75*46mm
Load capacity to 150kgs/200kgs
Load Height to 95mm to 103mm
Plate Size: 95X67mm/103mm
Hole Size: 73*45mm/81*59mm
Hole Diameter: 9.0mm
The Product is seriously controled bunder ISO9001: 2008.

Wheel D.	Wheel W.	Capacity	Setting Height	Top Plate Size	Hole Spacing	Hole Dia
65mm	40mm	150kgs	95mm	95*67mm	73*45mm	9
75mm	46mm	200kgs	103mm	1065*80mm	81*59mm	9
